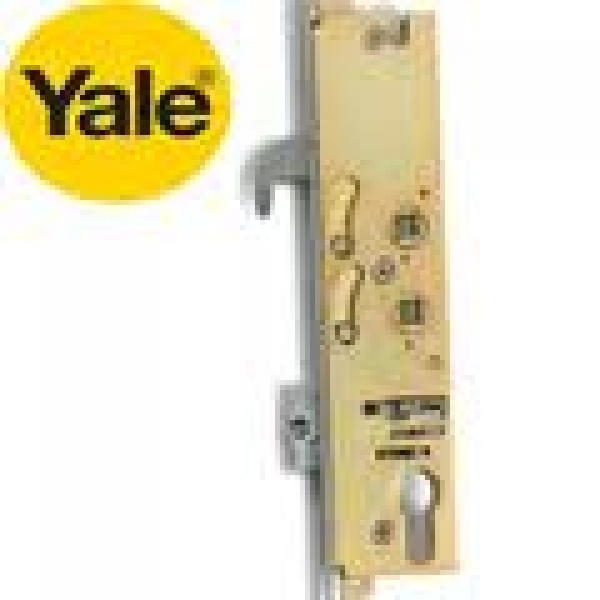

Upvc Yale Door Lock G2000 Series

Replacement gearbox for Yale 2000 series multipoint door locks

35mm Backset

This lock is a replacement gearbox for  the Yale 2000 series locks and comes with a backset of 35mm (measurement from handle spindle centre to front of lock faceplate). This is the part that is most likely to be at fault when a lock fails and becomes unusable. Replacing the gearbox is cost effective as it saves having to buy a complete new lock and it is quite easily replaced. Yale manufacture a range of 2000 series locks, this gearbox will fit most locks in the G2000 range, but as always taking careful measurements will ensure the correct size is ordered. The latch is easily adaptable to fit both left and right handed doors, the lock is designed for use with lever/lever or lever/pad operation handles.


Technical:

35mm Backset
92mm & 62mm handle Centre
Lever/ Lever or Lever/Pad operation
Non Handed - fits both left and right handed doors
Insurance Approved
Dimensions:

Lock case length - 195mm
Depth - 46.5mm
Width - 15mm

These door locks are used in The Upvc Door Company doors.

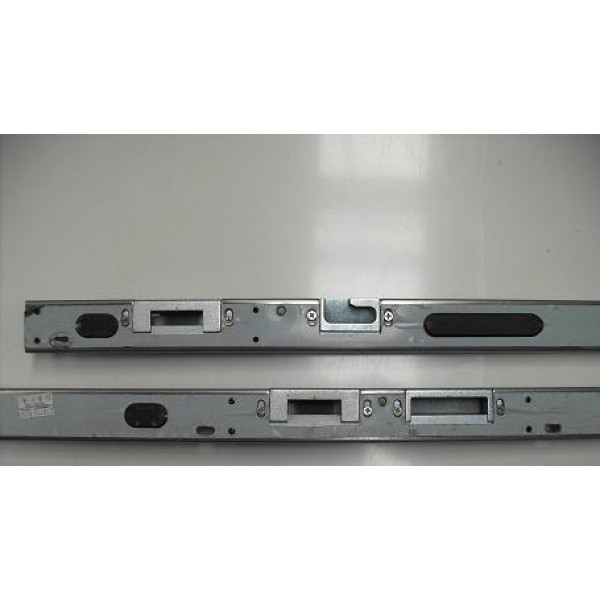

TOP AND BOTTOM HOOK GEARBOXS LOCKS ARE ALSO AVAILABLE IF NEEDED, PLEASE CONTACT US.
