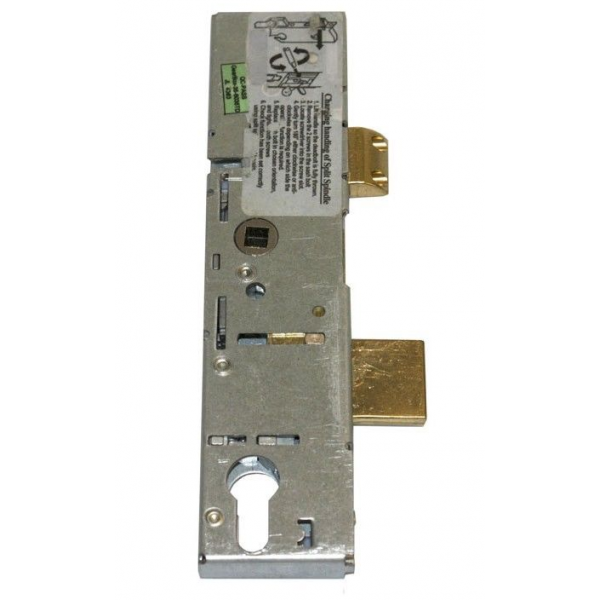

Era, Laird, Saracen, Surelock and Fab n Fix Replacement Gearbox

Replacement gearbox for Era, Laird, Saracen Surelock & Fab n Fix multipoint locks
30mm, 35mm and 40mm Backsets

This is the part that is most likely to be at fault when a lock fails.

These Era manufactured gearboxes with fit many brands such as Era, Laird, Saracen Surelock & Fab n Fix multipoint locks.
The latch is easily adaptable to fit both left and right handed doors
Designed for use with lever/lever handles but the split spindle will also allow for a lever/pad handles.

Technical:

92mm handle Centre
30mm, 35mm & 45mm Backsets
Lever/ Lever or Lever/Pad operation with the addition of a split spindle
Non Handed - fits both left and right handed doors
Dimensions:

Lock case length - 219mm
Depth - 50mm
Width -  15mm
Centre of latch to centre of deadbolt - 87.5mm
Deadbolt length 29.5mm - Thickness 5.3mm
Distance between faceplate screw holes: First to second screw hole 43mm - Second to third screw hole 85.5mm
