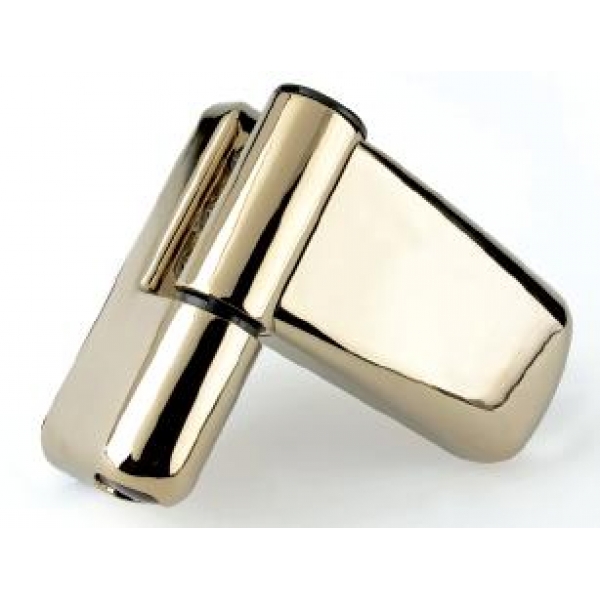

Ideal Gold Upvc Door Flag Hinges

The Ideal Gold PVD Upvc Flag Hinge for residential and French doors features three dimensional adjustment - vertical, lateral and fine tuning for compression. Adjustment with a 5mm allen key can be carried out without removing the door leaf from the frame. Strength is assured with a steel hinge pin.

Tested to exceed the requirements of PAS 023, the Ideal Flag Hinge has successfully completed 100,000 cycles under load - twice the 50,000 cycles requirement - and exceeds the 96 hours salt spray test requirements - plated finishes 240 hours, powder coated finishes 480 hours.

The hinge itself features four ?over-rebate bushes to fit over-rebate heights 14 - 24mm. Bushes are marked 14-20mm, 15-19mm,16-18mm and 17mm. The addition of a specially designed packer will increase the heights by a further 4mm to suit a range of profile systems.

Unlike other hinges the Ideal Flag Hinge utilises only one frame packer, with ‘friction fit’ for ease of fabrication, to alter over-rebate heights.

A captive sash retaining screw allows easy fitting of the sash lid. Positive location of the top cover cap and height adjustment packer further speeds fabrication.

The 'lift-on, lift-off' design of the Ideal Flag Hinge enables it to be quickly and easily installed on-site by one person. .

The Ideal Flag Hinge -  an Ideal hinge solution for every residential and French door
